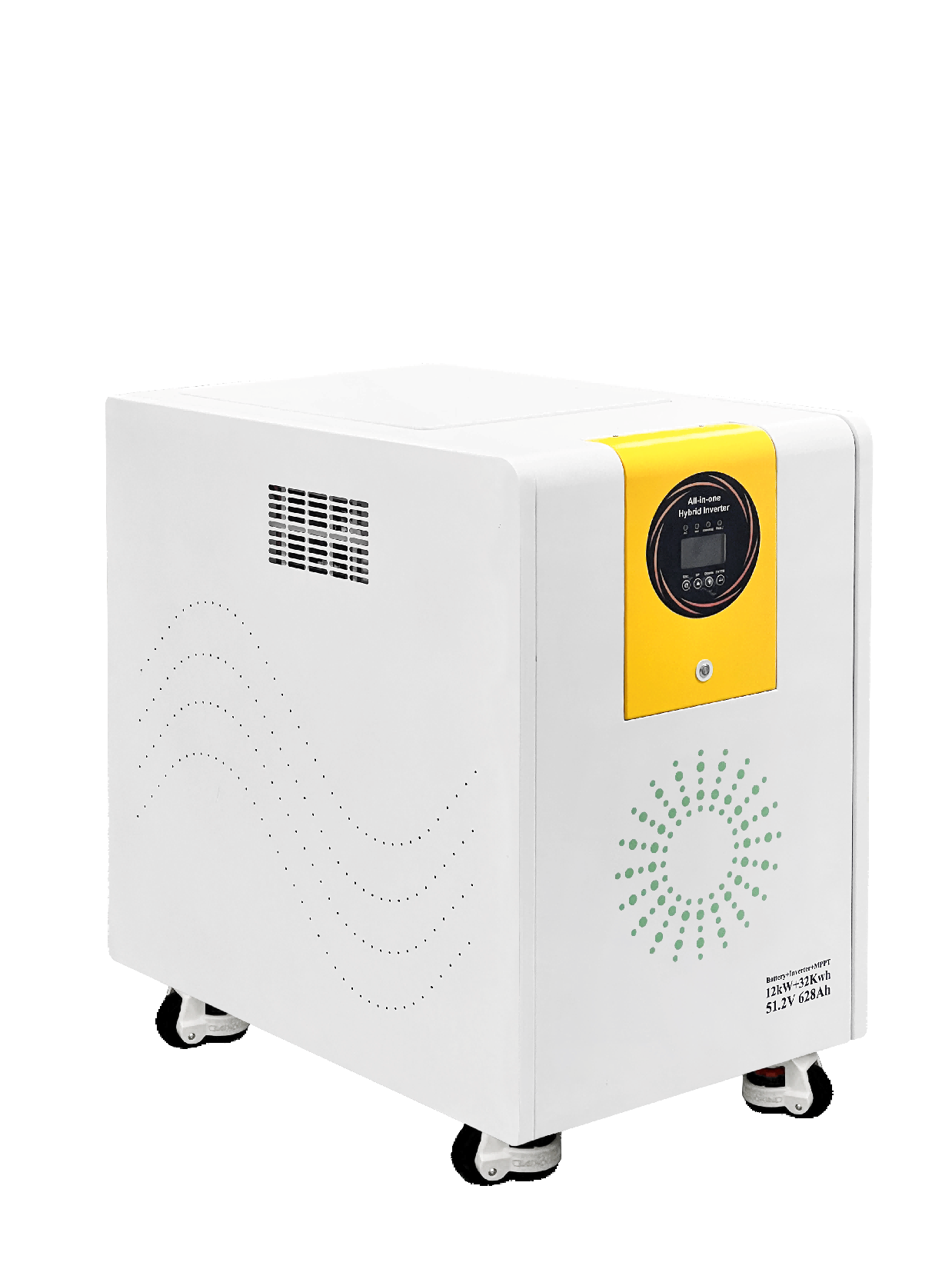

AL-PH12KW&32KWH: 12 kW rated output; 32 kWh battery energy. Wholesale enquiries and installer projects. Contact KEZHUN on WhatsApp for pricing.
Functions
- MPPT solar charging
- Wheeled enclosure
- Simultaneous AC and DC inputs
Specifications
| Model / configuration | AL-PH12KW&32KWH |
|---|---|
| Rated inverter output | 12 kW |
| Inverter DC voltage | 48 V |
| Battery energy | 32 kWh |
| Battery voltage | 51.2 V |
| Battery capacity | 628 Ah |
| Battery chemistry | LiFePO4 |
| MPPT inputs | 2 |
| Maximum combined MPPT power | 12000 W |
| Maximum MPPT power per input | 6000 W |
| PV charging voltage range | 80–500 V |
| Optimal PV voltage range | 300–400 V |
| Simultaneous AC and DC inputs | Yes |
| Wheeled enclosure | Yes |
| Product dimensions | 760 × 463 × 760 mm |
| Wooden crate dimensions | 830 × 533 × 930 mm |
| Total weight | 258 kg |
| Included accessories | national-standard charging cable x1 (plug standard unspecified) / user manual x1 |
| AC output voltage | 220–240 V |
| AC output frequency | 50 / 60 Hz |
Wholesale only. Single-unit retail orders are not supported. Contact us on WhatsApp to confirm MOQ and pricing.
Payment via XTransfer after quotation and order confirmation. Collection instructions are provided privately with the confirmed order.
Confirm the model, quantity, destination, installation requirements and any applicable AC voltage, frequency or plug configuration with the quotation.
