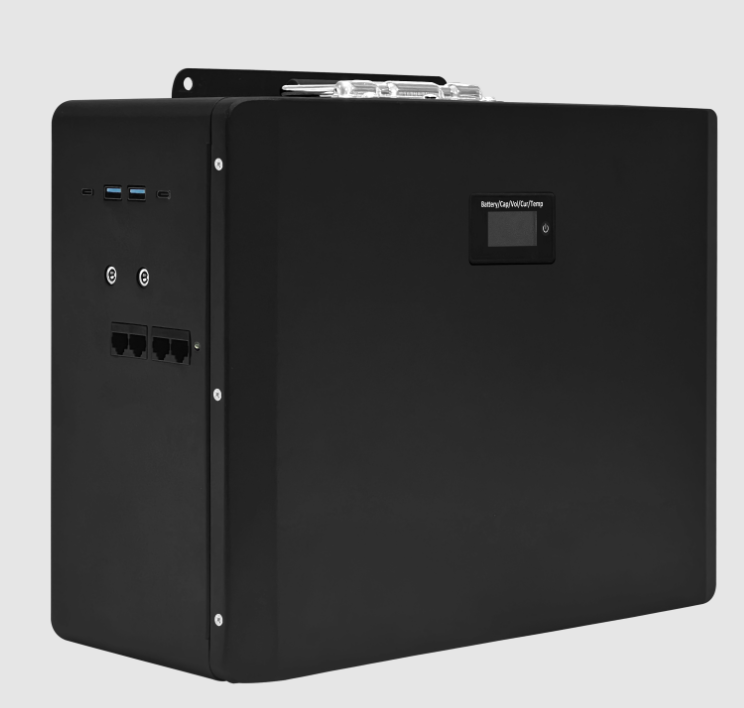

AL-WM128200 Storage Battery

SKU: AL-WM128200Batteries

Battery voltage
12.8 V
Battery capacity
200 Ah
Battery energy
2.56 kWh

Request quote Enquire on WhatsApp

Wholesale only · No single-unit retail orders. MOQ and pricing on WhatsApp.

Key features

  • Smart battery management system
  • LCD display
  • USB charging outputs
  • DC power outputs
  • Wall-mounted enclosure
Full specifications
Model / configurationAL-WM128200
Battery voltage12.8 V
Battery capacity200 Ah
Battery energy2.56 kWh
Battery chemistryLiFePO4
Cell configuration4S1P
Mountingwall
Smart BMSYes
LCD displayYes
Communication portpresent; protocol unspecified
USB outputs2 outputs, 5 V / 2 A
DC outputs2 outputs, 12 V / 10 A
Product dimensions400 × 390 × 150 mm
Carton dimensions450 × 440 × 205 mm
Net weight21 kg
Gross weight22.1 kg
Included accessoriesred positive cable x1 / black negative cable x1 / user manual x1

Confirm the model, quantity, destination, installation requirements and any applicable AC voltage, frequency or plug configuration with the quotation.

Documents & order information

Specifications & verification

Confirm model-specific specifications and any required certificates with KEZHUN before ordering.

Browse compliance & quality documents

Documents

Request the datasheet for this model. Confirm document availability and version with KEZHUN.

Request a Product Datasheet

Freight & Payment

Wholesale orders are confirmed by quotation. Ask for MOQ, product pricing, freight, any import charges, payment schedule and warranty terms in writing before ordering.

Payment via XTransfer after quotation and order confirmation. Collection instructions are provided privately with the confirmed order.
