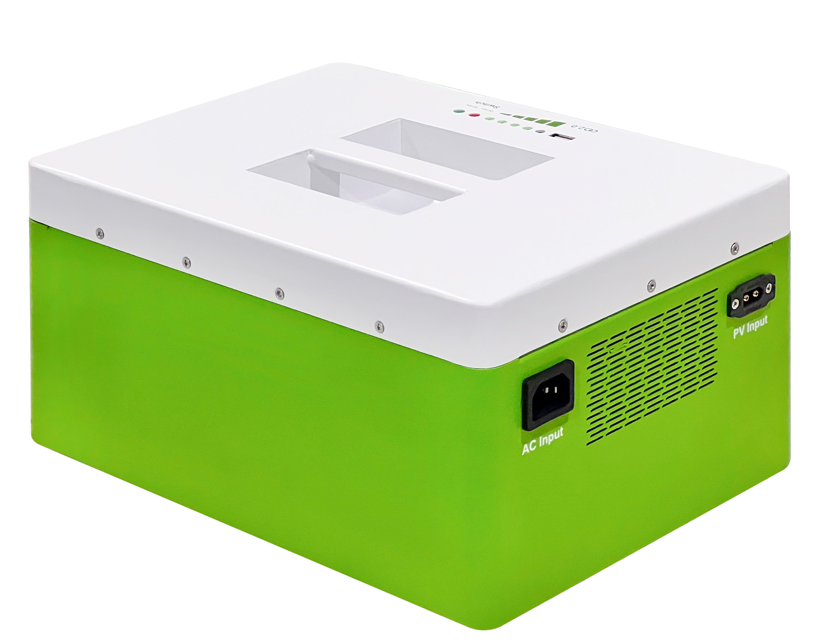

AL-DPH300W: 0.3 kW rated output; 0.65 kWh battery energy. Wholesale enquiries and installer projects. Contact KEZHUN on WhatsApp for pricing.
Functions
- MPPT solar charging
- USB 2.0 charging outputs
Specifications
| Model / configuration | AL-DPH300W |
|---|---|
| Rated inverter output | 0.3 kW |
| Maximum AC charging input | 300 W |
| Battery energy | 0.65 kWh |
| Battery cell voltage | 3.2 V |
| Battery cell capacity | 206 Ah |
| Battery cell quantity | 1 |
| MPPT inputs | 1 |
| Maximum MPPT charging power | 300 W |
| PV charging voltage range | 11–55 V |
| Maximum PV input current | 10 A |
| USB standard | USB 2.0 |
| Product dimensions | 300 × 220 × 150 mm |
| Carton dimensions | 310 × 230 × 160 mm |
| Gross weight | 8.5 kg |
| Included accessories | national-standard charging cable x1 (plug standard unspecified) / user manual x1 |
| AC output voltage | 220 V |
| AC output frequency | 50 Hz |
| Battery chemistry | LiFePO4 |
Wholesale only. Single-unit retail orders are not supported. Contact us on WhatsApp to confirm MOQ and pricing.
Payment via XTransfer after quotation and order confirmation. Collection instructions are provided privately with the confirmed order.
Confirm the model, quantity, destination, installation requirements and any applicable AC voltage, frequency or plug configuration with the quotation.
